StarShip can access Customer, Order, and Ship To user defined fields from Macola. In Customize Interface, you can map custom fields from the companies that use the current interface to StarShip fields. User fields that you can map to in StarShip appear on the Order tab (Order Field 1-5), Line Item tab (Item Field 1-5), Packaging tab (Pack Field 1-5), and Shipment tab (Shipment Field 1-5).
When shipping against Customers, only values from Customer User Defined fields are accessible. But, for shipments against Orders, all types of User Defined fields are accessible.
Note : Depending upon the version of Macola that you are using, the Macola field names may vary.

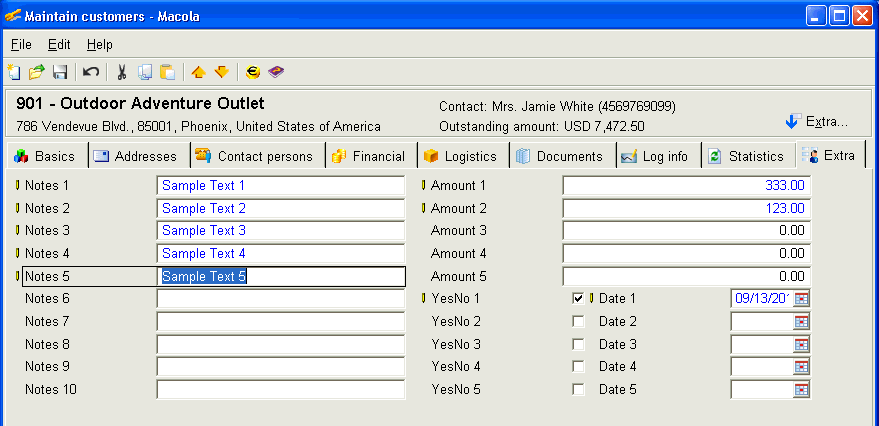

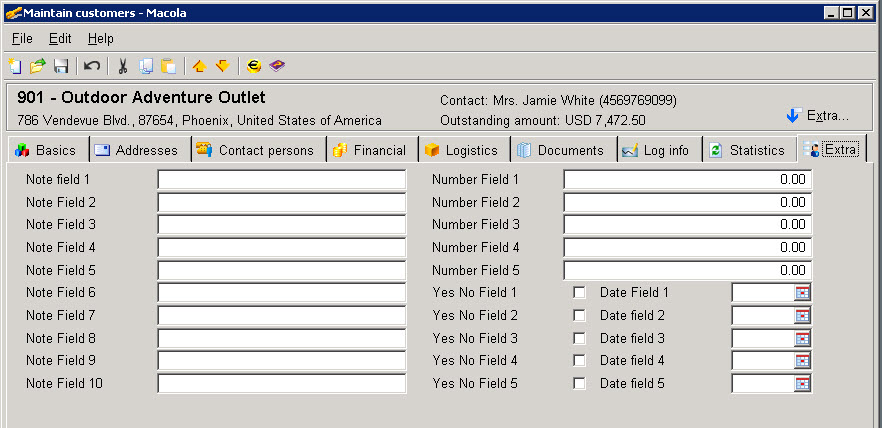

There are 11 custom fields associated with the Customer. You can populate these field names in A/R tab > Customers > Maintain by opening the customer record and selecting the Extra tab:
You can map these fields for the Orders and Customer document types in Customize Interface. The Macola Customer User Defined field names will appear in the Macola Source field list as Extra 1 - 11.
Tip : To browse all available Macola fields, click the magnifying glass icon next to the source field.
Field names when mapping between StarShip and the Customer document in Customize Interface :
Field Name in Macola |
|
Field Name in StarShip |
Notes or Notes Field 1 - 10 |
= |
Extra 1 - 10 |
Amount 1 |
= |
Extra 11 |
Field names when mapping between StarShip and the Orders document in Customize Interface :
Field Name in Macola |
|
Field Name in StarShip |
Notes 1 - 10 |
= |
Cust Extra 1 - 10 |
Amount 1 |
= |
Cust Extra 11 |
Date 1 - 5 |
= |
Ship To Date Field 1 - 5* |
Amount 1 - 5 |
= |
Ship To Numeric Field 1 - 5* |
Notes 1 - 5 |
= |
Ship To Text Field 1 - 5* |
Yes No 1 - 5 |
= |
Ship to Yes No Field 1 - 5* |
* Note : Applies for the default shipping address only.
StarShip can access the 5 User Defined fields that you populate from the OE & RMA tab - Entries > Enter Sales Orders - Select order > Extra tab.
Field Name in Macola |
|
Field Name in StarShip |
User Defined (5 fields) |
= |
User Defined 1 - 5 |

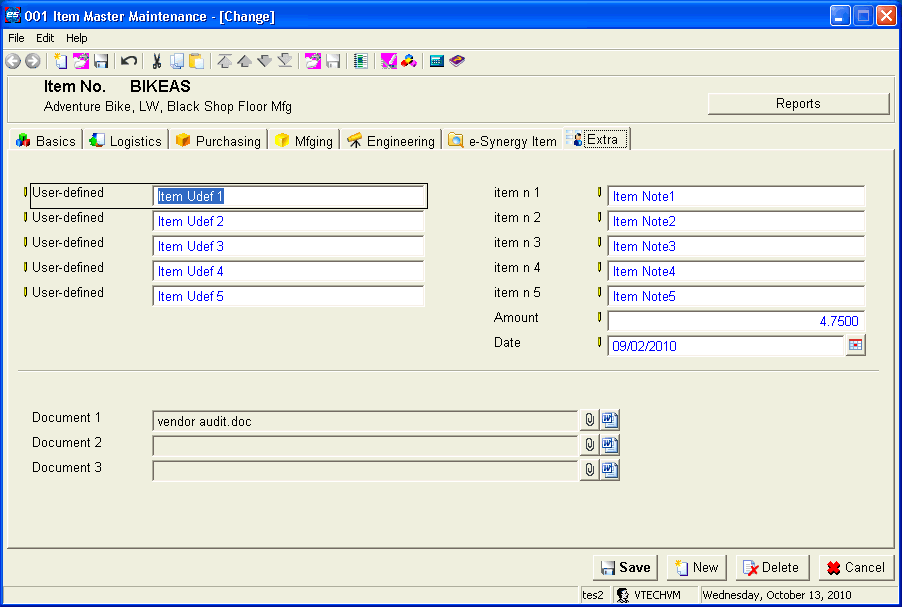

These User Defined fields are accessible from BOM & IM > Items > Maintenance - Select item > Extra tab.
Field Name in Macola |
|
Field Name in StarShip |
User Defined (5 fields) |
= |
Item User Defined 1 - 5 |
item n 1 - 5 |
= |
Item Note 1 - 5 |
Amount |
= |
Item Amount |
Date |
= |
Item Date |
Note : Depending upon the version of Macola that you are using, the Macola field names may vary.
These fields are accessible from BOM & IM > Items > Maintenance - Item/Customer button - Select customer > Extra tab.
Field Name in Macola |
|
Field Name in StarShip |
User Defined (5 fields) |
= |
Custom Item User 1 - 5 |
Note : Fields 6 -13 are also available, but they must be added in Macola in order for them to appear on the dialog box below.
These fields are accessible from the A/R tab > Customers > Maintain - Select customer > Addresses tab - Select address > Extra tab. They are not used when shipping to the default address. See also : Alternate Addresses - Orders
Field Name in Macola |
|
Field Name in StarShip |
Addresses : date field 1 - 5 |
= |
Ship To Date Field 1 - 5 |
Addresses : number field 1 - 5 |
= |
Ship To Numeric Field 1 -5 |
Addresses : text field 2 - 5 |
= |
Ship To Text Field 2 - 5 |
Addresses : yes no field 1 - 5 |
= |
Ship to Yes No Field 1 - 5 |
